ABAP Event Magic: Navigating Interactive Classical Reports for Dynamic Displays

 Welcome back everyone, We were discussing about Interactive Classical Report events, So, let’s continue it.

---

System Variables in Interactive Classical Report Events :-

1. SY-LISEL :- It is a system variable which returns the contents of the selected line.
2. SY-LSIND :- It is a system variable which returns the index of the displayed list.

Interactive Classical Report Events :-

1. At Line-Selection :-

• When user double clicks on the line or select a line and press F2 or select a line and click choose at that time at line-selection event triggers.

Suppose, user double click on the below line :-

Then the output should be showing the respective line items for the respective header items in a new page :-

Note :-

• F2 is the shortcut key for double click.
• It is a reserve key by SAP used for double click purpose.

---

Let’s take a requirement to understand the At Line Selection event.

Requirement :-

• Let’s use our order header and order item table, which we have been using so bar.
• So, I want a order number on the selection screen and when I press the execute button, It should be showing the header items and when I double click on a particular header items, It must be showing me line items.

Solution :-

• Step 1 :- Create a executable program in SE38 ( ABAP Editor ).

• Step 2 :- Create a type structure for order header table and also create internal table and work area.








• Step 3 :- Declare a select option for order number.








• Step 4 :- Write a select query to fetch data from database table into the internal table and then display the data from the internal table using loop statements.








• Step 5 :- Create a structure, internal table and work area for the item table.








• Step 6 :- Write a select query below the loop statements to fetch data from the item table based on SY-LISEL because it contain the selected line.








  Note :- Here SY-LISEL will contain the entire selected line,

  so we need to fetch only our order number from it.








• Step 7 :- Use loop on internal table of item to display the data.

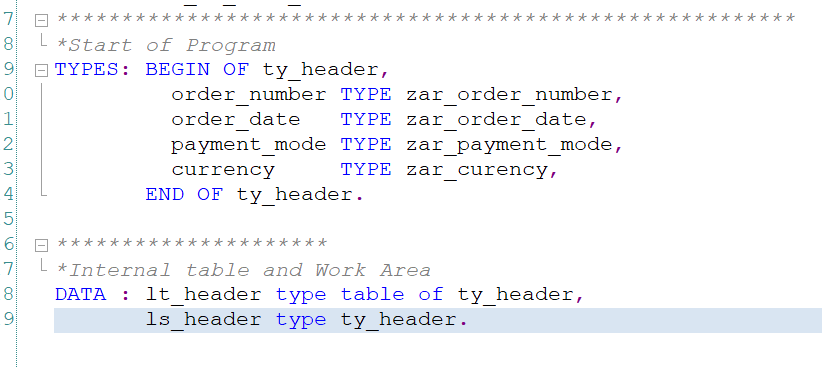

Code :-

*************************************************************
*Start of Program
*Declaring Strcutrure for header
TYPES: BEGIN OF ty_header,
         order_number TYPE zar_order_number,
         order_date   TYPE zar_order_date,
         payment_mode TYPE zar_payment_mode,
         currency     TYPE zar_curency,
       END OF ty_header.

*********************
*Internal table and Work Area
DATA : lt_header TYPE TABLE OF ty_header,
       ls_header TYPE ty_header.

****************
*Declaring Strcuture for item table
TYPES: BEGIN OF ty_item,
         order_number      TYPE zar_order_number,
         order_item_number TYPE zar_order_item_number,
         item_cost         TYPE zar_total_amount,
       END OF ty_item.

************************************
*Declaring internal table and work area
DATA : lt_item TYPE TABLE OF ty_item,
       ls_item TYPE ty_item.

*******************************
*Select option Declaration
DATA : lv_order TYPE zar_order_number.
SELECT-OPTIONS : s_order  FOR lv_order.

*********************************
*Writing a select query for header
START-OF-SELECTION.
  SELECT order_number order_date
    payment_mode currency
    FROM zar_header INTO
    TABLE lt_header
    WHERE order_number IN s_order.

***************************************
*Displaying the data
  LOOP AT lt_header INTO ls_header.
    WRITE :/ ls_header-order_number,
             ls_header-order_date,
             ls_header-payment_mode,
             ls_header-currency.

  ENDLOOP.

*********************************
AT LINE-SELECTION.
  SELECT order_number
      order_item_number
      item_cost FROM zar_item
    INTO TABLE lt_item
    WHERE order_number = sy-lisel+0(12).

  IF lt_item IS NOT INITIAL.
****************************
*LOOP on item
    LOOP AT lt_item INTO ls_item.
      WRITE :/ ls_item-order_number,
               ls_item-order_item_number,
               ls_item-item_cost.
    ENDLOOP.
  ENDIF.

********************************************
*End of Program
**************************************************************

Execute the Program :-

Header details :-

• Now, double click on the second record

Item Details :-

---

So, that’s enough for today.

We will continue with Interactive Classical Report statements in the next blog.

Thanx a lot for being a part of this wonderful journey.
