Persistence Class



  • Persistence Class is one of the four classes in Object Oriented Programming in ABAP.
  • The purpose of persistence class is to perform database operations like insert, update, delete.
  • The persistence class name must start with CL.
  • While creating the persistence class, 2 helper class creates automatically. Those helper classes are CA and CB.
  • CA is called as actor class or agent class.
  • CB is called base class.

Creating Persistence Classes :-

  • Step 1 :- Go to SE24 and give a suitable name to the class.



  • Step 2 :- Click on create button.



  • Step 3 :- Click on save and Provide Package and transaction requests

  • Step 4 :- We will get automatic one interface and one friend class as we can see below.







    Requirement :-

    • How to create getter and setter method for a particular table using Persistence Class.

    Solution :-

  • Step 1 :- Click on go to. → Persistence Representation

    • It will ask for table name.
  • Step 2 :- Provide the table name.



    • Press enter.


  • Step 3 :- Click on the above field name one by one and click upper arrow button.

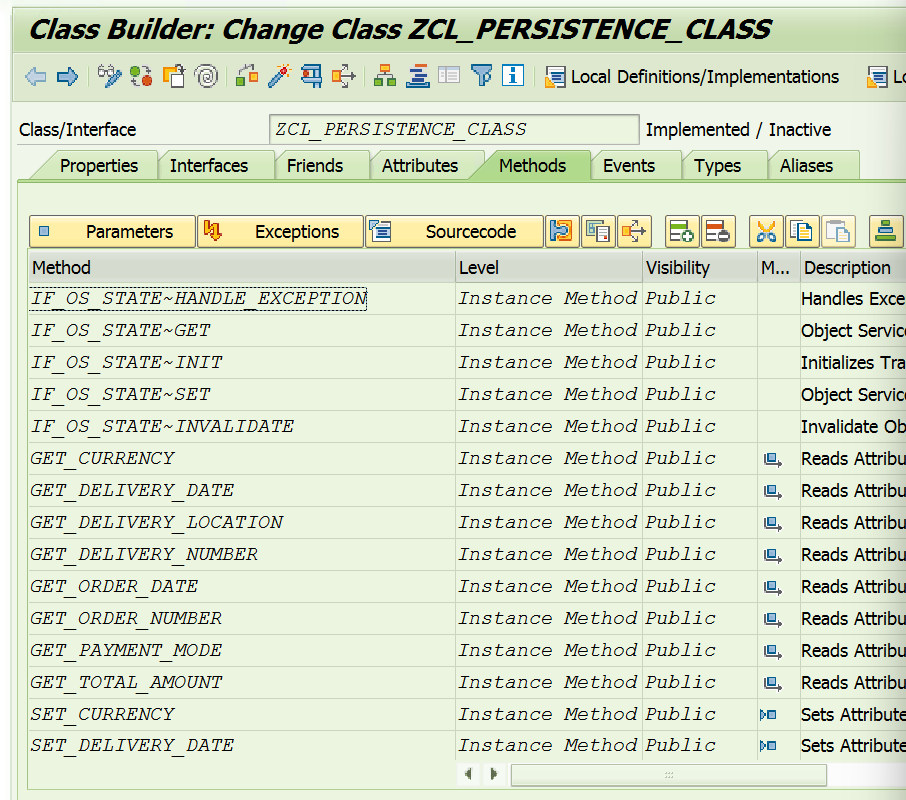

  • Step 4 :- Click on save. and as soon as you will go back you will see many methods will have created automatically.



    • SAP automatically generated getter and setter method for the fields of table.
    • For primary field SAP will generate getter method only.
    • and for non primary field it will generate both getter and setter methods.
